WORKING PRINCIPLE OF CNC TURNING AND TYPES OF CNC MACHINES???
Working Principle of cnc turning.
•In cnc lathe machine tool in movement against
rotating work-piece.
 |
| CNC Turning Working Principle |

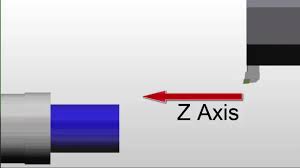

•Tool movement in linear motion
| linear movement towards chuck |
•Work-piece is rotating cylinderical
•Single point cutting tool is using for
cutting.
 |
| CUTTING TOOL |
Types
of CNC machines
• T.C =
Turning Centre
• V.M.C
= Vertical Machining centre
• H.M.C. =
Horizontal Machining Centre
• V.T.L.
= Vertical Machining Lathe
• T.M =
Turn Mill
This I have told you about some types of
machine which are very much used in production line nowadays. Each machine has
its own distinct characteristics and a different way of controlling them.
Transfer fixtures to the machine. Move the equipment in the machine. Move both
the fixture and equipment in the machine. All machines have their own special
features, these machines are used as components made in machines. Many machines
also have different methods of fastening the workpiece. Clamping in a machine
is caused by air pressure, and clamping is performed with hydraulic pressure.
And some have them fitted manually with nut bolts. V.M.C, H.M.C and V.T.L, can
grind much heavier than C.N.C (T.C) machine. This is because most of the jaws
are used in CNC (T.C) and work in the rest of the machines. According to the
workpiece.
